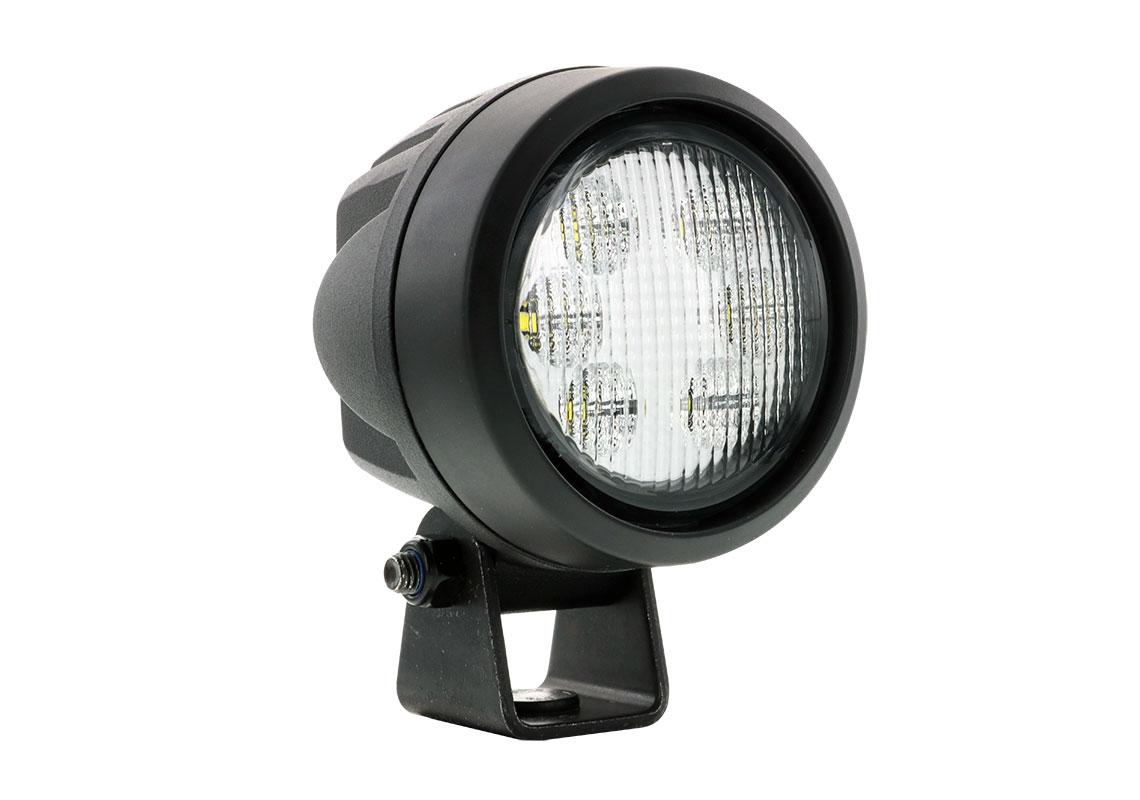

ABL Backljus LED R23 1500

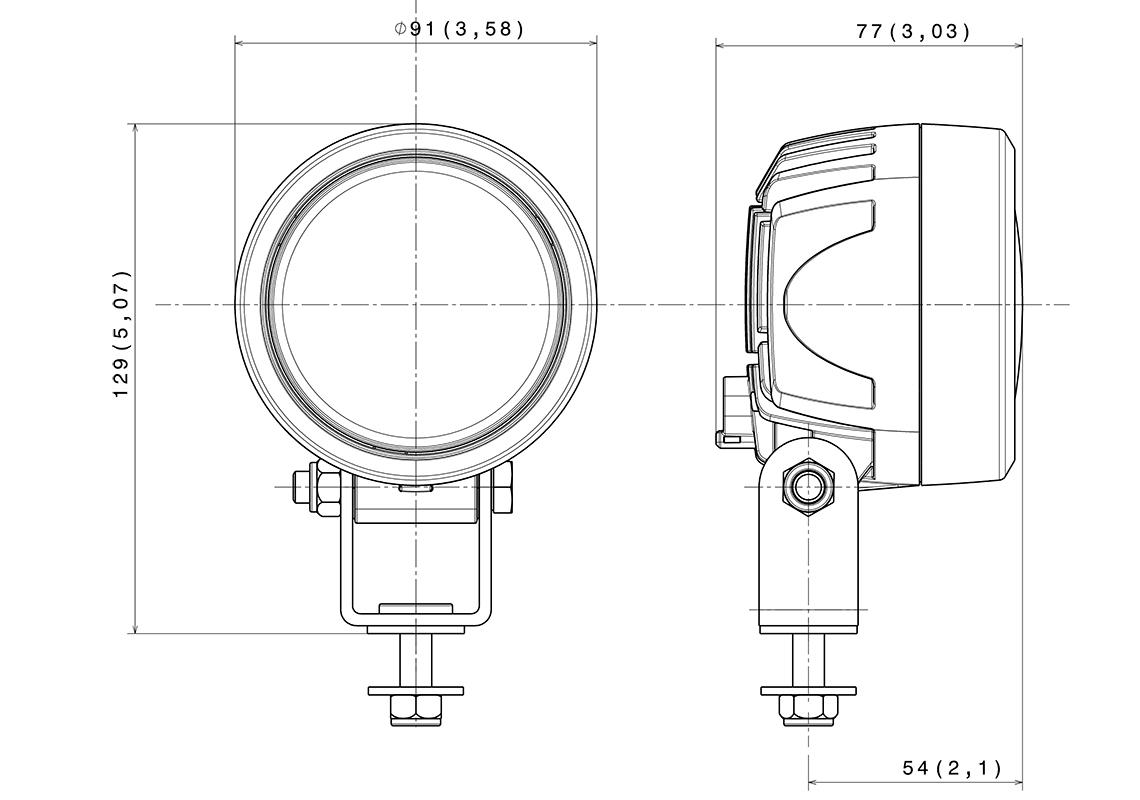

Latest generation LED work light with R23 reverse approval. As standard this work light includes features such as the EMC CISPR25 class 5 as well as the integrated load dump, to meet the most severe manufacturer specifications. Technical characteristics Brand: ABL Product Type: Reverse work light Voltage: 12/24 V Source: LED Amperage: 0,58 AMP at 24V Consumption: 14W Operational Lumen: 1500 Lumen Color Temperature: 6000 K for crystal version Light pattern: R23 reverse approved Color: Crystal Connector: DT 2 pin Mounting: Pedestal Fixation: To be screwed Lens Material: Hardened glass Housing Material: Aluminium Shape: Round Depth: 77 mm Diameter: 91 mm Height: 124 mm Weight: 0,45 Kg IP protection: IP68 - IP69K Polarity: Protected against reverse voltage Electronic Thermal Management: Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant Operation Temperatures: -40°C to +85°C Load Dump: 36V CONTINUOUS / ISO 7637-2 Pulse 5a Salt Spray Test: ISO 9227 Vibration Resistance: 15 Grms, from 24Hz to 2000Hz Shock resistance: 60G Lifetime: 30 000 operating hours EMC: ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 Industry: Agriculture, Construction, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab
